Opis

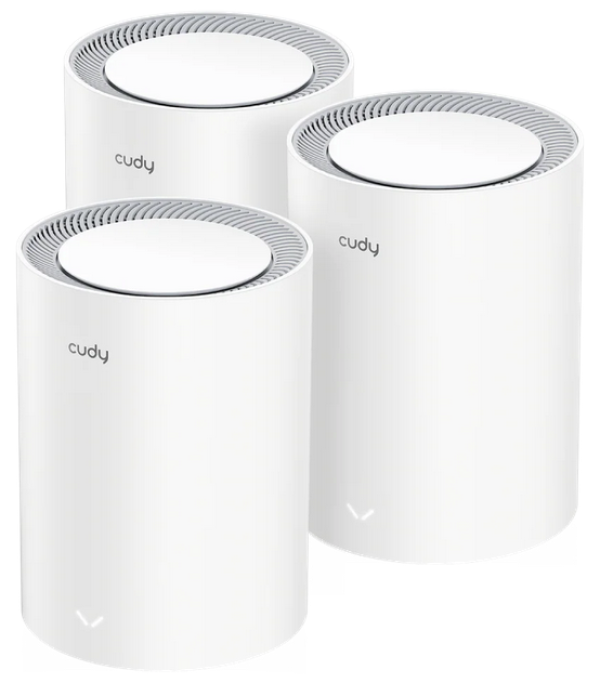

Sistem mesh WiFi 6 sa pet antena koji pruža super-brzu mrežu za velike domove, idealan za 4K striming i gejming. Pogodan za internet konekciju do 2,5 Gbps.
-1,3 GHz dual-core procesor
-4-Stream dual-band Wi-Fi 6
-2402 Mbps + 574 Mbps Wi-Fi
-200 povezanih uredaja
-Brzo prebacivanje izmedu pristupnih tacaka (Fast Roaming)
-Cudy Mesh, VPN server i klijent
-Istovremeni multi-band backhaul
-Cudy aplikacija, kontrola preko oblaka
Tehnicke specifikacije – Model M3000 2.0
Procesor (CPU):
– Tip: ARM Cortex-A53
– Radni takt: 1.3 GHz
– Jezgra: Dual-Core (2 jezgra)
Memorija i skladište:
– Flash / ROM: 128 MB (1 Gbit) NAND
– DDR / RAM: 256 MB (2 Gbit) DDR3
Bežicna mreža (Wi-Fi)
-Brzina Wi-Fi mreže:
– 5 GHz: do 2402 Mbps
– 2.4 GHz: do 574 Mbps
-Wi-Fi tokovi (Streams):
– 5 GHz: 2T2R (2×2 MIMO)
– 2.4 GHz: 2T2R (2×2 MIMO)
Antene:
Ukupno: 5 internih antena
– 5 GHz: 3 interne antene
– 2.4 GHz: 2 interne antene
Beamforming: podržan (True)
Domet signala:
Maksimalni domet: do 220 m
Testirano u otvorenom prostoru sa minimalnim smetnjama. Stvarni domet Wi-Fi mreže može varirati u zavisnosti od rasporeda prostorija i materijala zidova.
Prolazak kroz zidove:
– Dva drvena zida debljine < 10 cm
– Jedan betonski zid debljine < 20 cm ili dva betonska zida debljine < 10 cm**

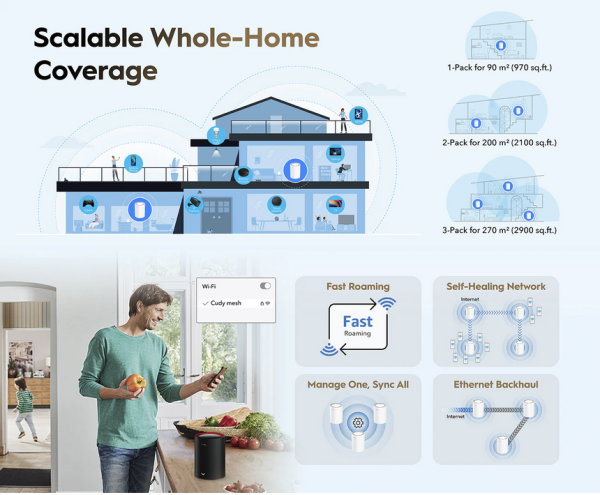

Referentna pokrivenost u zatvorenom prostoru:
– 2 uredaja (2 Pack): do 200 m²
– 3 uredaja (3 Pack): do 270 m²
Ove vrednosti važe za konfiguraciju sa bežicnim backhaul-om. Preporucuje se postavljanje uredaja u centar svakog sprata, sa maksimalno tri prepreke izmedu uredaja i svake prostorije.
Napomena: Na starijim pakovanjima mogu biti navedene drugacije vrednosti, jer su testovi radeni u objektima sa drvenom konstrukcijom, dok su vrednosti na sajtu bazirane na objektima od betona.
Interfejsi:
Ethernet portovi:
– 1 × 2.5G RJ45 port (WAN)
– 1 × Gigabit RJ45 port (LAN)
LED indikatori:
– Status sistema
– Status / brzina / aktivnost Ethernet porta
Dugmad:
– WPS dugme
– Reset dugme
Napajanje:
– Konektor: DC prikljucak
Napajanje:
– Nacin napajanja: DC
– Ulaz napajanja: 12V ? 1A
Adapter u pakovanju:
– Ulaz: 100–240V , 50/60Hz
– Izlaz: 12V / 1A
– Maksimalna potrošnja: 11.5 W
– Potrošnja u mirovanju: 4.2 W
Radni uslovi:
– Radna temperatura:** 0 – 40 stepena C
– Temperatura skladištenja: -40 – 70 stepena C
– Radna vlažnost: 10% – 90% (bez kondenzacije)
– Vlažnost skladištenja: 5% – 95% (bez kondenzacije)
Sertifikati: FCC, CE
Fizicke karakteristike:
-Nacin instalacije: postavljanje na sto (Desktop)
Dimenzije:
– 110 × 154.5 mm
– 4.33 × 6.08 inca
– Težina uredaja: 360 g
Sadržaj pakovanja:
– M3000 uredaj (3 u pakovanju)
– Adapter za napajanje
– Ethernet kabl
– Uputstvo za instalaciju
Softverske specifikacije:
Bežicna mreža (Wireless)
Wi-Fi standardi: Wi-Fi 6
Maksimalna Wi-Fi modulacija: 1024-QAM
Efikasnost Wi-Fi mreže:*
– OFDMA
– MU-MIMO
– BSS Color
Maksimalan kapacitet: 512 uredaja
Preporuceni maksimalni broj klijenata: 200
Maksimalna širina Wi-Fi kanala: 160 MHz
Wi-Fi bezbednost: WPA / WPA2 / WPA3
Gostujuca mreža:
– 2.4 GHz
– 5 GHz
WPS: Da
Opšte (General)
Radni režimi:
– Wi-Fi ruter
– Pristupna tacka (Access Point)
– Proširivac dometa (Range Extender)
– WISP
– Klijent
Mesh: Cudy Mesh
Mesh backhaul:
– Bežicni backhaul
– Žicni backhaul
Multi-band backhaul: Da
WAN režimi:
– DHCP
– Staticka IP adresa
– PPPoE
– PPTP
– L2TP
Mreža (Network)
QoS: Ogranicenje brzine po korisniku
DHCP:
– Rezervacija adrese
– Lista DHCP klijenata
– Server
– IP verzije: IPv4 / IPv6
IPv6 protokoli:
– Relay
– Dinamicki (SLAAC / DHCPv6)
– Staticki (fiksna IP)
– Passthrough
– 464XLAT
– MAP-E
– DS-Lite
IPTV / VLAN:
– Bridge
– Tag VLAN
– VoIP VLAN
– IPTV VLAN
Prilagodavanje TTL-a:
– Extend (produženje)
– Spoof (maskiranje)
– Custom (rucno podešavanje)
IGMP:
– IGMP Proxy
– IGMP Snooping
Prosledivanje:
– Port Forwarding
– Port Triggering
– UPnP
– DMZ
Firewall:
– SPI Firewall
– DoS zaštita
– Blokiranje PING-a
Application Layer Gateway:
– IPSec Passthrough
– L2TP Passthrough
– PPTP Passthrough
– FTP Passthrough
– TFTP Passthrough
– H323 Passthrough
– SIP Passthrough
– RTSP Passthrough
Alati (Utilities):
VPN server:
– WireGuard
– OpenVPN
– IPsec
– Zerotier
– PPTP
– L2TP
VPN klijent:
– WireGuard
– OpenVPN
– IPsec
– Zerotier
– PPTP
– L2TP
DNS opcije:
– DNS over TLS
– Rucni DNS
– Rebind zaštita
– Prepisivanje DNS-a klijenata
DNS over TLS provajderi:
– Cloudflare
– Google
– Quad9
– Custom (rucno)
Wake on LAN: Da
Online detekcija: Da
Upravljanje (Management):
Roditeljska kontrola:
– Podešavanje profila
– Offline vreme
– Online vreme
– Pauziranje interneta
– Web filter
Upravljanje svim uredajima:
– Raspored Wi-Fi vremena
– MAC filter
– IP/MAC vezivanje
Upravljanje po uredaju:
– Internet ukljucen / iskljucen
– VPN ukljucen / iskljucen
– Raspored online vremena
– Preimenovanje uredaja
Upravljanje sadržajem:
– Filter domena
– IP filter
Sistem (System)
Kontrola LED svetla: Da
Lokalna kontrola:
– Konfiguraciona web stranica
– Kontrola preko aplikacije
Daljinska kontrola:
– Konfiguracija preko HTTPS stranice
– Kontrola preko aplikacije
– TR069 / TR098 / TR111 / TR143 / TR181
Nadogradnja firmware-a:
– Lokalno ažuriranje
– Aplikacija (OTA – Over the Air)
– Online ažuriranje
Pouzdanost:
– Automatski restart u odredeno vreme
– Backup i vracanje podešavanja
Dijagnosticki alati:
– Dijagnostika
– Ping
– Traceroute
– NSLookup
– Sistem log
Kontrolna tabla (Dashboard):
Panel:
– Status interneta
– Status mesh mreže
– Upravljanje uredajima
– WAN status
– LAN status
– WISP status
– Wi-Fi status
– VPN status
– Status DHCP servera
– Verzija sistema
Grafikoni:
– Mesh topologija
– Brzina interneta
– WISP brzina
– Wi-Fi brzina
Wireless:
Wi-Fi Standards: Wi-Fi 6
Max Wi-Fi Modulation: 1024-QAM
Wi-Fi Efficiency
– OFDMA
– MU-MIMO
– BSS Color
Maximum Capacity: 512 devices
Recommended Client Limit: 200 devices
Maximum Wi-Fi Channel Width: 160 MHz
Wi-Fi Security:** WPA / WPA2 / WPA3
Guest Network:
– 2.4 GHz
– 5 GHz
WPS: Supported
General:
Operation Modes:
– Wi-Fi Router
– Access Point
– Range Extender
– WISP
– Client
Mesh: Cudy Mesh
Mesh Backhaul:
– Wireless Backhaul
– Wired Backhaul
Multi-Band Backhaul: Supported
WAN Modes:
– DHCP
– Static IP
– PPPoE
– PPTP
– L2TP
Network
QoS: Per-User Rate Limiting
DHCP:
– Address Reservation
– DHCP Client List
– DHCP Server
**IP Versions:** IPv4 / IPv6
IPv6 Protocols:
– Relay
– Dynamic (SLAAC / DHCPv6)
– Static (Fixed IP)
– Passthrough
– 464XLAT
– MAP-E
– DS-Lite
IPTV / VLAN:
– Bridge
– Tag VLAN
– VoIP VLAN
– IPTV VLAN
TTL Customization:
– Extend
– Spoof
– Custom
IGMP:
– IGMP Proxy
– IGMP Snooping
Forwarding:
– Port Forwarding
– Port Triggering
– UPnP
– DMZ
Firewall:
– SPI Firewall
– DoS Protection
– Block PING
Application Layer Gateway:
– IPSec Passthrough
– L2TP Passthrough
– PPTP Passthrough
– FTP Passthrough
– TFTP Passthrough
– H323 Passthrough
– SIP Passthrough
– RTSP Passthrough
Utilities:
VPN Server:
– WireGuard
– OpenVPN
– IPsec
– Zerotier
– PPTP
– L2TP
VPN Client:
– WireGuard
– OpenVPN
– IPsec
– Zerotier
– PPTP
– L2TP
DNS Options:
– DNS over TLS
– Manual DNS
– Rebind Protection
– Override Clients’ DNS
DNS over TLS Providers:
– Cloudflare
– Google
– Quad9
– Custom
Wake on LAN: Supported
Online Detection: Supported
Management:
Parental Controls:
– Profile Settings
– Offline Time
– Online Time
– Pause Internet
– Web Filter
All Devices Management:
– Wi-Fi Time Schedule
– MAC Filter
– IP/MAC Binding
Per-Device Management:
– Internet On/Off
– VPN On/Off
– Online Time Schedule
– Device Rename
Content Management:
– Domain Filter
– IP Filter
System:
LED Control: Supported
Local Control:
– Web Configuration Page
– App Control
Remote Control:
– HTTPS Configuration Page
– App Control
– TR069 / TR098 / TR111 / TR143 / TR181
Firmware Upgrade:
– Local Update
– OTA (App)
– Online Update
Reliability:
– Scheduled Reboot
– Backup & Restore
Diagnostic Tools:
– Diagnosis
– Ping
– Traceroute
– NSLookup
– System Log
Dashboard:
Panels:
– Internet Status
– Mesh Status
– Device Management
– WAN Status
– LAN Status
– WISP Status
– Wi-Fi Status
– VPN Status
– DHCP Server Status
– System Version
Charts:
– Mesh Topology
– Internet Speed
– WISP Speed
– Wi-Fi Speed
